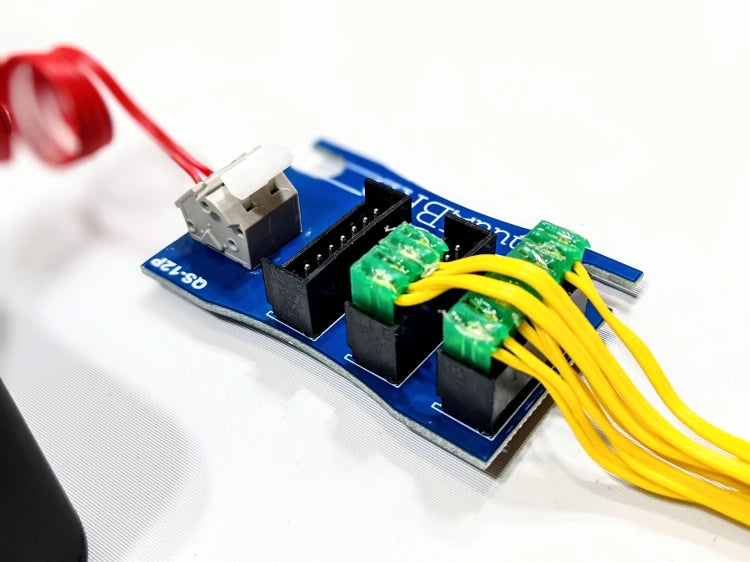

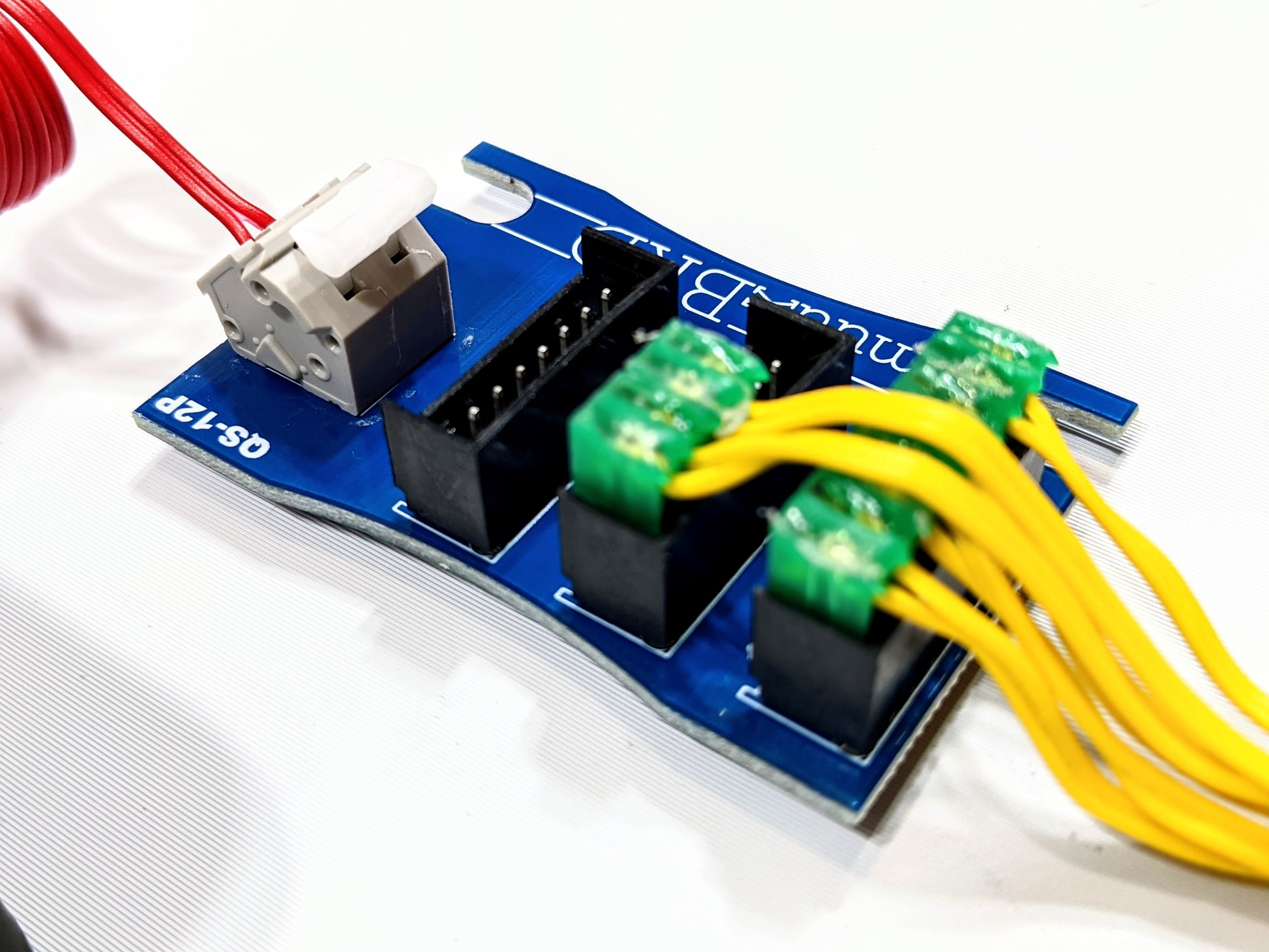

12-Port Parallel E-Match Breakout Board

Stop wasting precious setup time cutting, stripping, twisting, and taping bare wires just to fire multiple effects from a single cue. The muuxBRD QuickSplit-12P eliminates wiring confusion and manual labor, letting you safely expand your show's scale without spending thousands on extra firing modules.

Engineered for everyone from weekend backyard display enthusiasts to high-volume professional pyrotechnicians, the QuickSplit-12P delivers maximum cue expansion, ultimate field reliability, and effortless parallel connections at a fraction of the cost.

Why Choose the QuickSplit-12P?

• 8x Faster Setup Speed: Instantly plug in your ignitors without cutting, stripping, or taping wires, getting your show set up in a fraction of the time.
• Error-Free Continuity: Avoid misfires and short circuits caused by hand-twisted connections with precise, heavy-duty tin and gold-plated termination points.
• Streamlined Troubleshooting: Instantly isolate continuity issues or swap individual lines without unravelling messy electrical tape bundles.
• Maximum Cue Capacity: Fire up to 12 electric matches simultaneously off a single output cue to maximize your existing firing hardware investment.

Key Features & Benefits

• High-Tension Spring Connector Input: Accepts bare-wire pigtails via a robust spring-tension terminal that grips so tightly the wire will break before slipping out.
• 12 QuickPlug / QuickConnect Outputs: Fully compatible with standard QuickPlug and QuickConnect electric match terminations for rapid push-and-click deployment.
• Ultra-Compact Footprint: Engineered to be roughly the size of a U.S. quarter, making it effortless to pack, route, and mount in tight racks or mortar blocks.
• Field-Proven Durability: Built on resin-impregnated, flame-resistant FR4 fiberglass substrate and drop-tested up to 3 meters for rugged outdoor display sites.

Technical Specifications

System Compatibility

• Firing Systems: Compatible with all major commercial and consumer electronic firing systems (COBRA, FireOne, PyroMATE, Bilusocn, Ignite, Mongoose, Starfire, fireTEK, etc.). Note: Always consult your firing system manufacturer's specifications for maximum parallel ignition current and recommended wire length limits.
• Ignitor Types: Fully compatible with QuickPlug, QuickConnect, and standard bare-wire electric matches (when using pigtail adapters).

What’s In The Box & What You Need

• Included: (1) muuxBRD QuickSplit-12P Breakout Board.

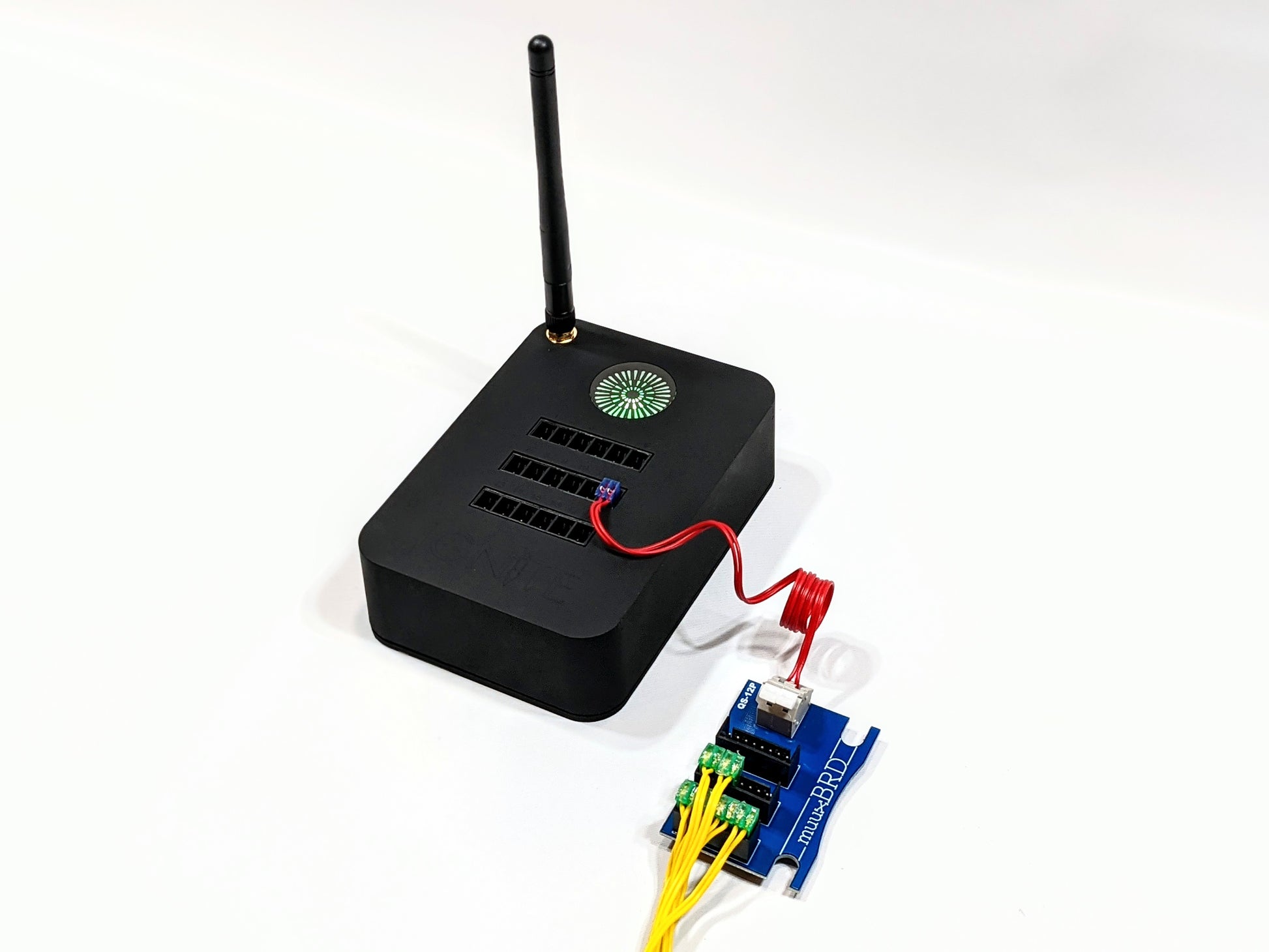

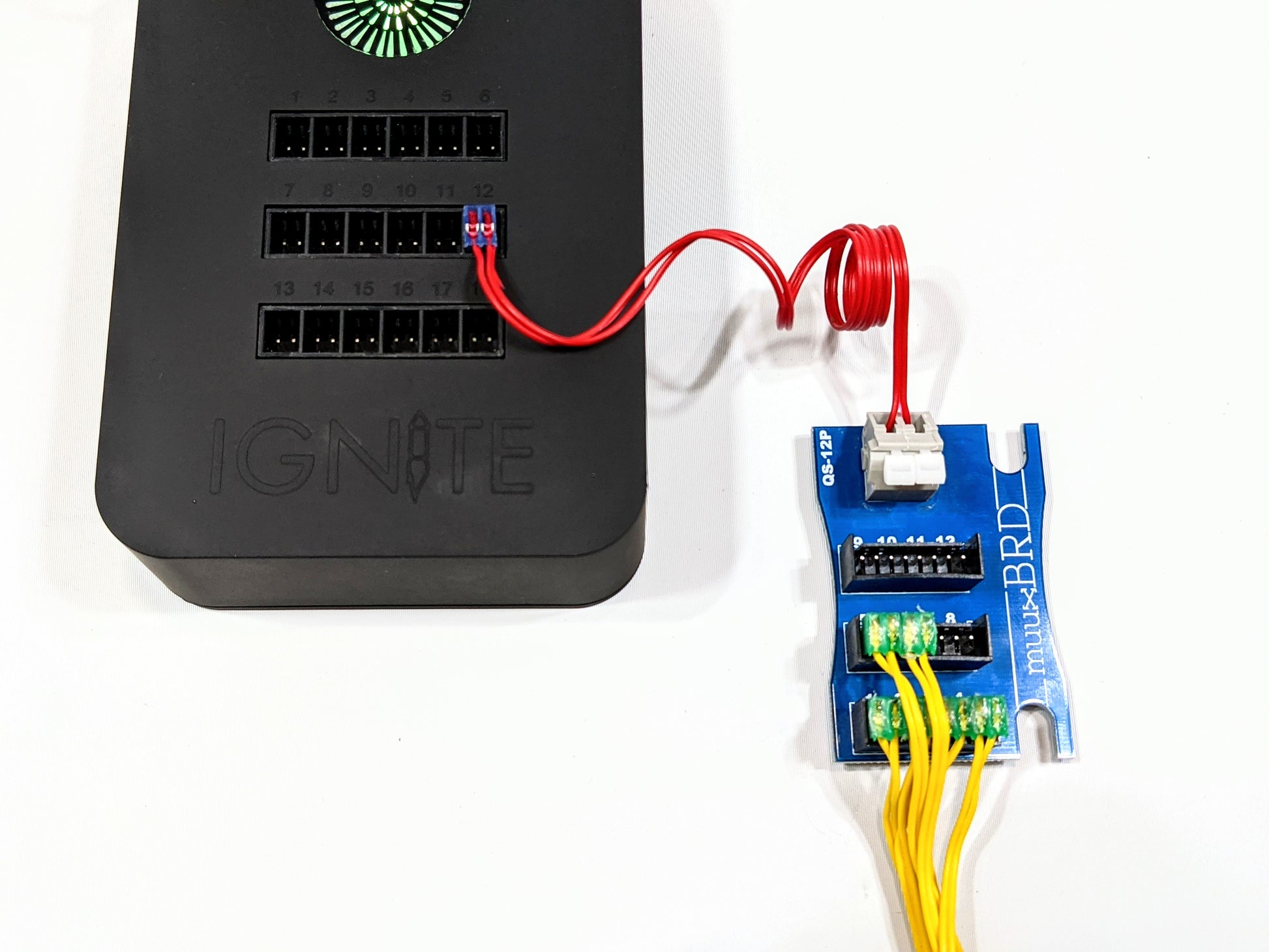

• What You Need: Standard QuickPlug pigtail cable to connect from your firing module cue to the QuickSplit input.

Pro Tip: Save money and keep spent wires out of the landfill—repurpose spent e-match lead wires to create your own custom-length QuickPlug input pigtails in seconds!

Protect your hardware on the firing field with optional muuxBRD protective enclosures, mounting brackets, and rack clips designed specifically for the QuickSplit line.
