QuickSplit-4 (QS-4) | Fire More Ematches in Less Time

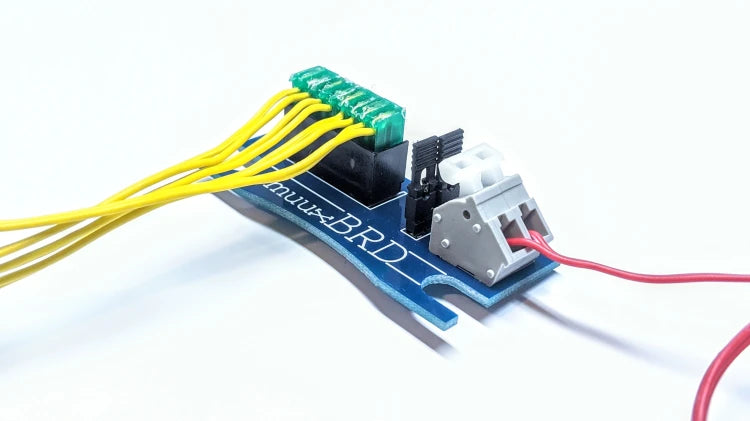

If you have ever wondered how to series connect ematches without cutting, stripping, twisting, and taping wires in the dark, the QuickSplit-4 is your answer. Manually wiring multiple QuickPlug or QuickConnect ignitors to a single cue can be frustrating, time-consuming, and confusing for less experienced crew members. This original "1 cue in, 4 ematches out" ematch splitter completely eliminates the hassle of traditional wiring.

Designed for everyone from backyard hobbyists to hard-working professional display technicians, this 4 cue expansion breakout board is the most efficient way to connect 4 ematches together. It allows you to dramatically expand your firing capacity without the steep financial investment of buying additional firing modules. Keep the "Quick" in QuickPlugs, trade the frustration for simplicity, and make your field setups infinitely more reliable.

Why Choose the QuickSplit-4?

• Lightning-Fast Setups: Achieve up to 8x faster setup times by eliminating manual wire preparation and simply plugging directly into the 4 cue breakout.
• Flawless Reliability: Say goodbye to taped wires slipping loose during a show; secure connections ensure perfect continuity when it matters most.
• Effortless Troubleshooting: Takes the guesswork out of how to series ignitors—plug-and-play architecture makes continuity checks and field troubleshooting incredibly easy.
• Maximum Gear Value: A highly cost-effective investment to safely connect multiple ignitors and instantly multiply the capacity of your existing firing modules.

Key Features & Benefits

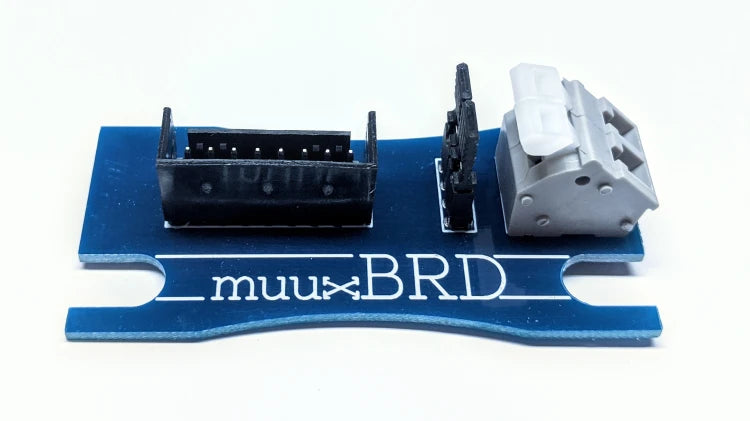

• Bulletproof Input Connections: Features a rugged spring-tension input connector that grips your pigtail wire so tightly, the wire will snap before it ever slips out.
• Universal Plug Outputs: Perfectly compatible with standard QuickConnect and QuickPlug electric matches for seamless series ematches.
• Ultra-Compact Footprint: Incredibly small and easy to hide within close-proximity or field setups—the entire board is roughly the size of a U.S. quarter.
• Field-Ready Materials: Crafted from a resin-impregnated, flame-resistant fiberglass substrate with tin and gold-plated electrical connections to combat corrosion and endure harsh environments.

Technical Specifications

System Compatibility

• Firing Systems: Compatible with all major electronic firing systems. Note: Consult your firing system manufacturer for specific limits on cable lengths and the maximum number of ematches able to be fired in series.
• Ignitor Styles: Outputs seamlessly accept QuickConnect and QuickPlug compatible ematches.

What’s In The Box & What You Need

• Included: 1x QS-4 Breakout Board and 2x Jumpers.

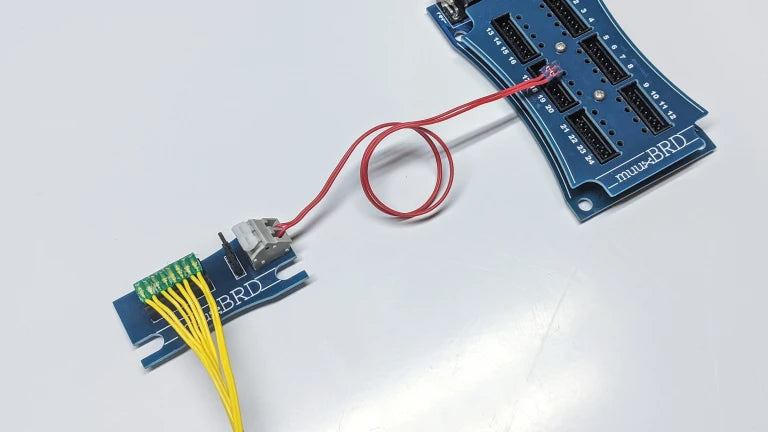

• What You Need: A pigtail connection to your firing module. There are no proprietary cables to buy or maintain—simply supply your own wire.

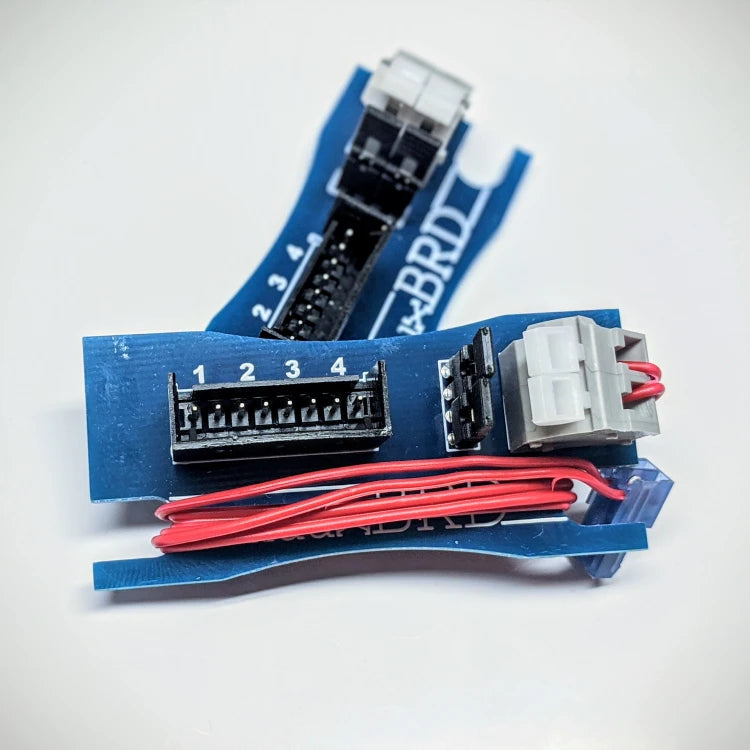

Pro Tip: Save a spent ematch wire from the landfill to use as your QuickPlug pigtail! It's a free, zero-waste way to connect your QuickSplit to your firing system without buying additional wire.

Looking to safeguard your investment from extreme fireworks fallout? muuxBRD offers optional rugged enclosures and custom mounting brackets designed specifically for most QuickSplit models.
