Expand Single-Cue Capacity in Seconds

Stop wasting precious setup time cutting, stripping, twisting, and taping ignitor wires in the field. The muuxBRD QuickSplit-12 eliminates manual wiring headaches, allowing you to instantly expand your cue firing capacity without buying expensive extra firing modules.

Engineered for everyone from weekend pyros to seasoned display operators, the QuickSplit-12 delivers a high-speed, reliable series breakout solution that scales your show while keeping gear costs low.

Why Choose the QuickSplit-12?

• 8x Faster Setup: Slash labor time by up to 87% compared to manual wire twisting and taping during multi-ematch series setups.
• Uncompromised Field Reliability: Eliminates loose connections and short circuits, ensuring maximum continuity and safer ignition across all connected ignitors.
• Rapid Continuity Troubleshooting: Plug-and-play sockets allow you to isolate and swap faulty ignitor leads instantly without unwrapping sticky electrical tape.
• Cost-Effective Cue Expansion: Safely scale your show's shell count and visual impact without investing thousands of dollars in extra firing system modules.

Key Features & Benefits

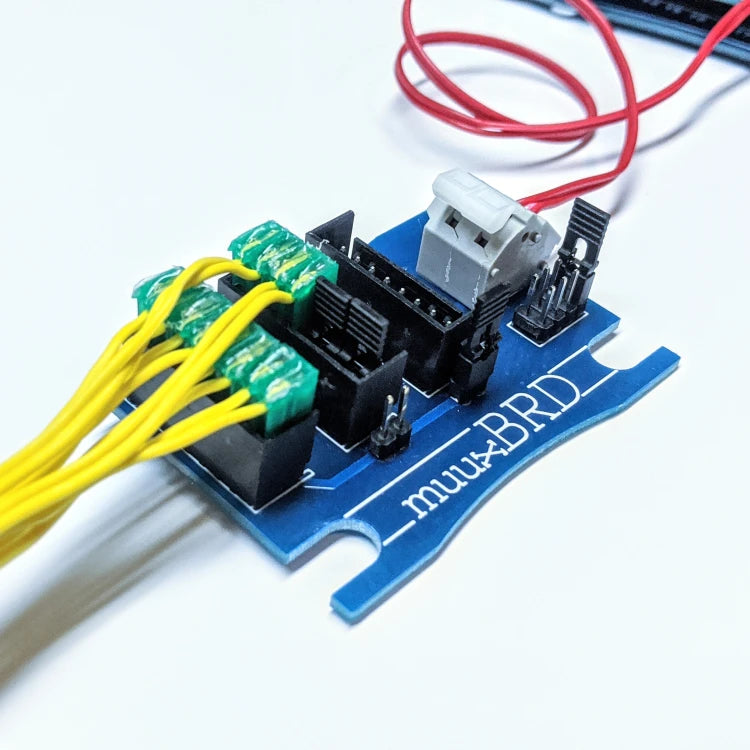

• Spring-Tension Input Terminal: Ultra-strong spring connector grips raw incoming leads so securely that the copper wire will snap before slipping loose.
• QuickPlug & QuickConnect Outputs: Fully compatible with industry-standard QuickPlug/QuickConnect ematch headers, preserving rapid-plug functionality.
• Flame-Resistant Substrate & Plating: Resin-impregnated fiberglass construction with corrosion-resistant tin/gold plating withstands harsh pyro field conditions.

Technical Specifications

System Compatibility

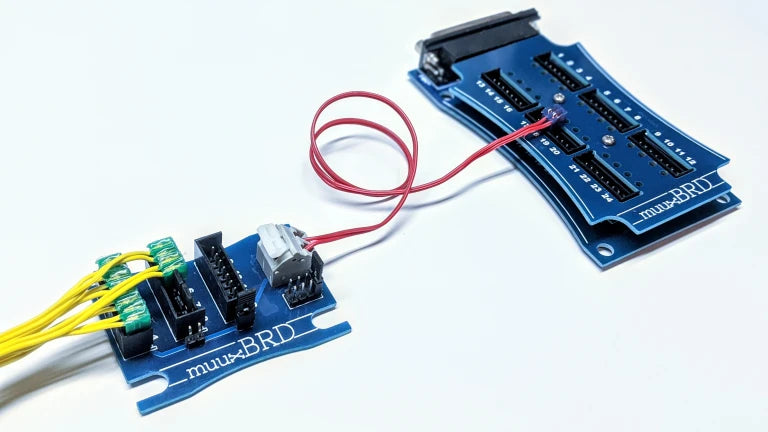

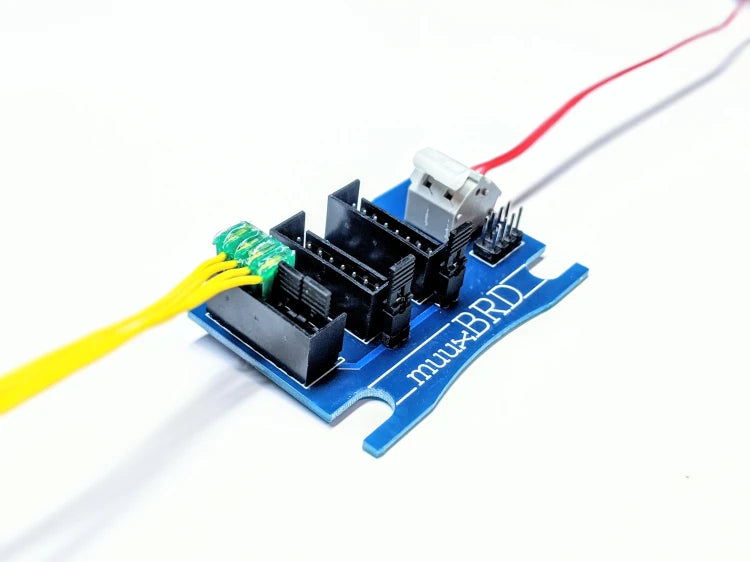

• Firing Systems: Compatible with all major electronic firing systems (COBRA, Ignite, Bilusocn, FireOne, Mongoose, fireTEK, Starfire, etc.). Note: Always consult your specific firing system manufacturer's guidelines regarding maximum cable lengths and series ematch limits at your system's operating voltage.
• Ignitor Styles: Direct native support for QuickPlug and QuickConnect electric match connectors.

What’s In The Box & What You Need

• Included: 1x QuickSplit-12 (QS-12) Breakout Board, 4x Series Jumpers.
• What You Need: 1x QuickPlug Pigtail lead (easily created by cutting and re-using wire from a spent ematch—no proprietary extension cables required).

Pro Tip: Don't throw away spent ematch lead wires after a show! Cut off the burned head, strip the two lead ends, and keep the intact QuickPlug tail in your field toolkit to use as a free, recycled pigtail connector for your QuickSplits.

Protect your breakout board investment from debris and harsh fireworks fallout with optional muuxBRD mounting brackets and weather-resistant protective enclosures.
